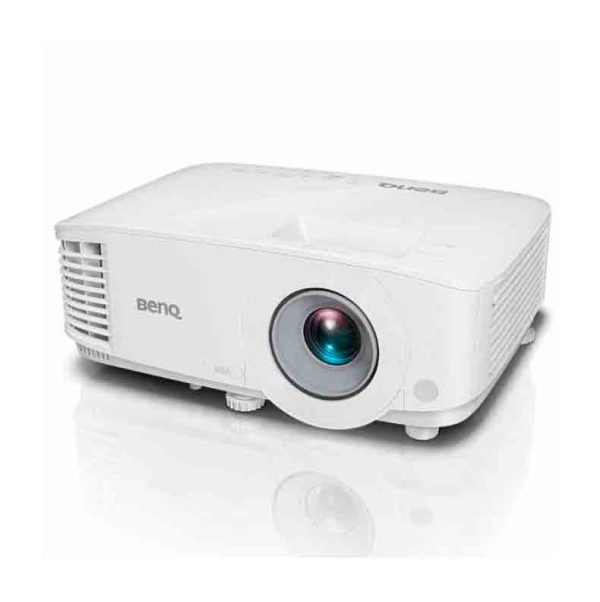

BenQ MS560 4000lms SVGA Meeting Room Projector

BenQ MS560 4000lms SVGA Meeting Room Projector

Brightness of 4000 ANSI Lumens
SVGA (800 x 600) Native Resolution
1.1x Zoom / 1.96 to 2.15:1 Throw Ratio
VGA, S-Video, Composite, 2x HDMI Inputs
VGA Output for Loop-Through
Analog Audio Input and Output
Built-In 10W Mono Speaker
VGA Cable & IR Remote Included

SKU: 9H.JND77.1HR

Out of stock

Compare

0 People watching this product now!

Full Description and technical specifications

BenQ MS560 4000lms SVGA Meeting Room Projector

Image Display

Display System	0.55″ DMD DLP
Native Chip Resolution	800 x 600 (SVGA)
Supported Resolutions	Maximum: WUXGA – 1920 x 1200
Maximum Brightness	4000 Lumens (ANSI)
Offset	110% vertical
Aspect Ratio	Native: 4:3
Dynamic Contrast Ratio	20,000:1
Color Depth	10-Bit (1.07 Billion Colors)

Lens

Focus	Manual
Lens	f/2.56 – 2.68 (f = 22 – 24.1 mm)
Optical Zoom	Manual: 1.1x
Throw Distance	3.921 – 41.099′ / 1.195 – 12.527 m
Throw Ratio	1.96 to 2.15:1
Projection Size	30 – 300″ / 76.2 – 762.0 cm

Features

Keystone Correction	Auto-Vertical: ± 40°
Multi-Input Support (PIP/PBP)	Not Specified by Manufacturer
Ceiling Mountable	Yes
Rear Screen Projection	Yes
Built-In Speaker	Yes (Mono)
Speaker Power	10W
Remote	Yes

Input/Output Connectors

Inputs/Outputs	2 x HDMI 1.4a Audio, Video Input 1 x DE-15/DB-15 (VGA) Video Input 1 x DE-15/DB-15 (VGA) Video Output 1 x 4-Pin DIN (S-Video) Video Input 1 x RCA (Composite) Video Input 1 x 1/8″ / 3.5 mm Mini Audio Input 1 x 1/8″ / 3.5 mm Mini Audio Output 1 x USB-A 2.0 Data, Power 1 x Mini-USB 2.0 Control, Service 1 x DE-9/DB-9 (RS-232) Control Input
HDCP Support	Version 1.4

Hardware

Bluetooth

None

General

Light Source	Lamp
Expected Lamp Life	Full Brightness: 6000 Hours Medium Brightness: 10,000 Hours Low Brightness: 15,000 Hours
Fan Noise	Full Brightness: 34 dB Low Brightness: 29 dB
Security	Cable Lock Slot

AC Input Power	100 to 240 VAC, 50 / 60 Hz
Power Consumption	Full Brightness: 260 W Standby Mode (Lamp Off): < 0.5 W
Operating Altitude	0.0 to 9842′ / 0 to 3000 m
Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Operating Humidity	10 to 90%
Storage Humidity	10 to 90%
Dimensions (W x H x D)	11.7 x 4.7 x 8.7″ / 296.0 x 120.0 x 221.0 mm
Weight	5.1 lb / 2.3 kg
